Technical parameters and application of 5 axis cnc milling engraving cutting machine

Five-axis cnc styrofoam cutting machine is widely used in the non-metallic field. Whether it is cutting, V-grooving, or curved 2d relief, it can be done with ease and efficiency is twice the result with half the effort.

The main technical parameters of the 5 axis robot arm cnc milling engraving machine include the following aspects:

1: There are two types of 5 axis cnc milling machine structure, gantry structure and fixed beam structure. The gantry structure is mainly used for 2d relief cutting. Its advantages are large strength, fast speed. The fixed beam structure has a relatively high precision and is used more in hot-pressed curved wood cutting milling and plastic blister cutting.

2: Processing accuracy: the processing accuracy of the 5 axis cnc router machine arm mainly depends on the mechanical structure, assembly, motion structure and other aspects.

3: Working size: this is determined according to the customer's processing workpiece, we have different model of 5 axis cnc milling machine, it can process both small and large products.

4: The servo power: is related to the size of 5 axis robot arm cnc millng engraving router, and it is also inevitably related to the spindle power. The spindle power naturally requires a large motion motor, etc.

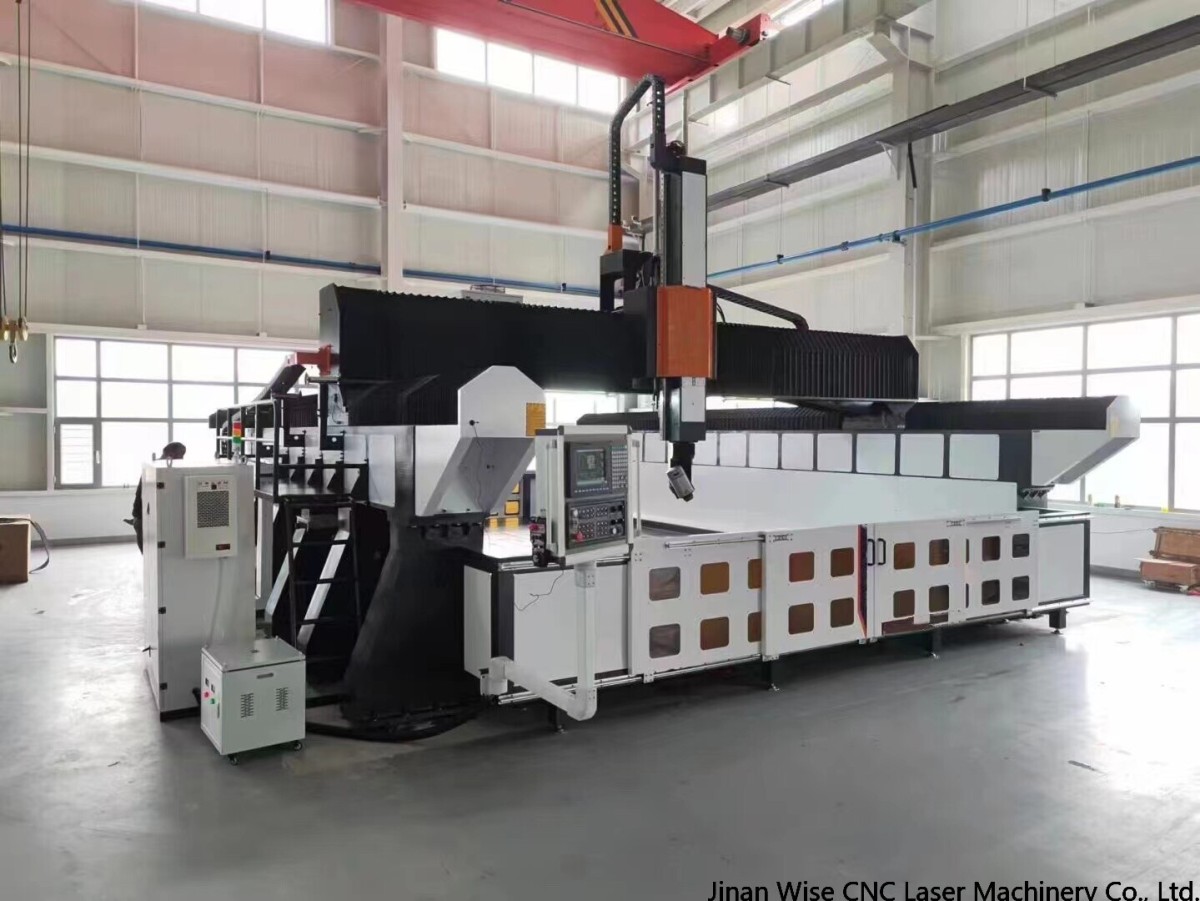

Following is some quick details of our 5 axis eps 3d sculpture and sign letter cnc plaster sculpture routing machine:

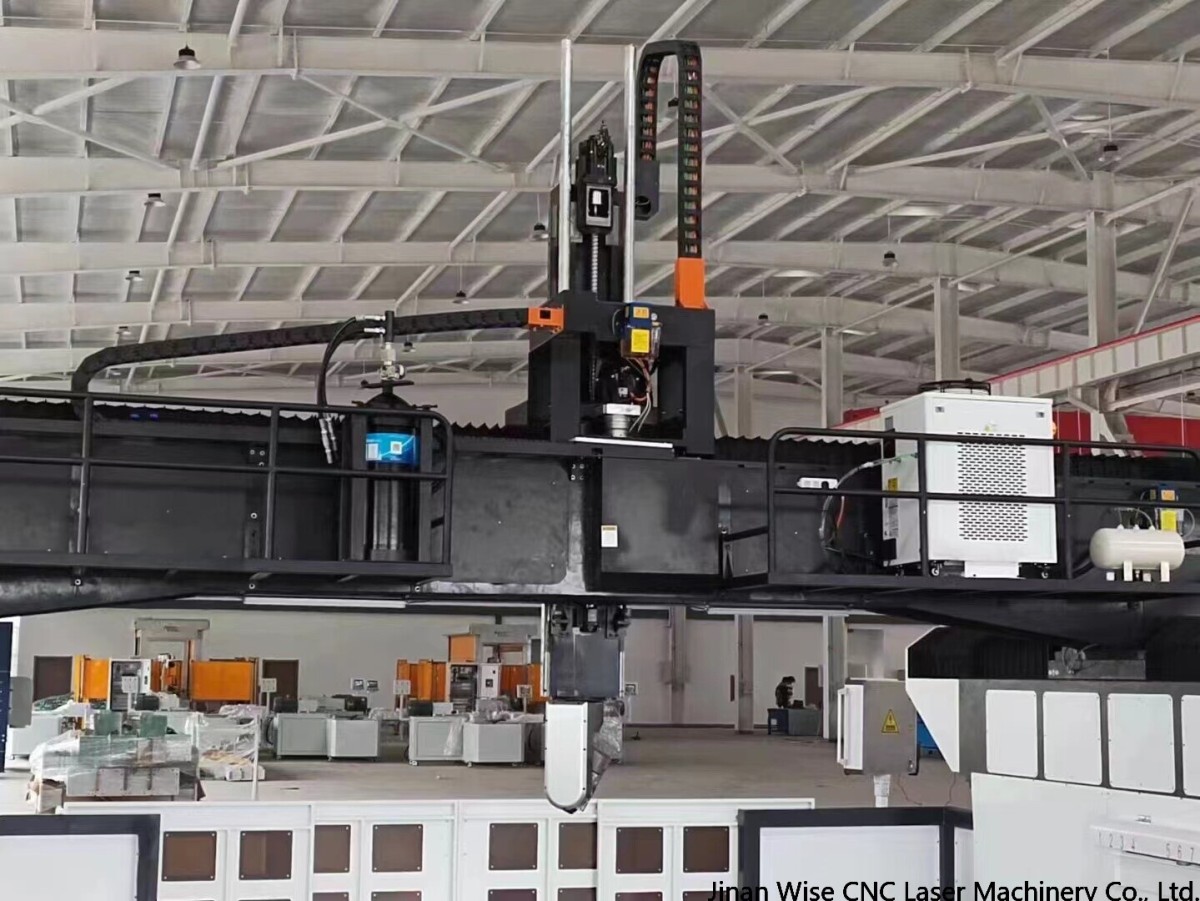

1:Structure: our 5 axis cnc router use cast iron vertical structure, used in occasions with high requirements for machining accuracy, most of them use welded bed, high cost performance.

2: XYZ axis linear guide, generally configured with 35mm high precision square guide rail. The spindle column drives the tool to move, and the BC axis cradle turntable.

3:Precision: linear axis precision 0.05mm, repeatability 0.02mm; rotary axis precision 16", repeatability 12".

‌4: Working size: X/Y/Z working size 1300*2500*500mm, B axis working size +30～-120°, C axis working size +/- N*360°.

5:Power and speed: spindle power 6KW or 9KW air cooling spindle, speed 18000rpm, total power of foam milling 5 axis machine is 30KW

Some tips for choosing best 5 axis non-metal cnc milling machine:

Large non-metal 5 axis cnc processing centers are widely used in different industries, and different application scenarios have different configuration methods. Choosing equipment suitable for your own processing will double the result with half the effort.

For equipment in the ancient building industry, normally suggest you choose large size 5 axis cnc styrofoam cutting machine. After all, ancient buildings are generally more grand and large, large size 5 axis cnc router machine function is extraordinary. In the selection of motors, suggest select the machine with high power motor. If cnc machine configuration is reasonable, the processing speed is improved while the accuracy is guaranteed. A stable system is also an indispensable and important option. The system is not only related to stability, but also the accuracy of the algorithm can improve the processing speed and processing accuracy.

Good after-sales service is also an important guarantee for worry-free use. direct factory is good choice to get good after-sale service. Our factory provide one and half a year warranty for 5 axis cnc eps foam engraving machine, increase usage guarantee of new equipment. In addition to free charge for spare parts within warranty period, we also provide training. Equipment without training is basically waste. Training can improve the efficiency of use. At the same time, proficient programming also provides more guarantees for improving processing speed.

All in one, jinan wise cnc laser machinery co ltd. is your best choice for 5 axis cnc router machine. Act now to get best price 5 axis cnc milling machine.
