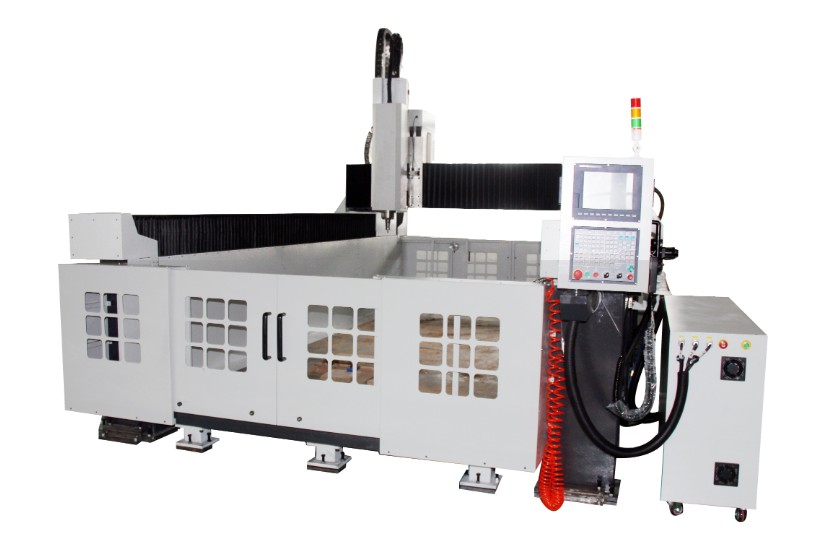

The foam engraving machine is a CNC equipment specialized in processing foam. It is mostly suitable for furniture industry, styrofoam mold engraving, garden and other decoration industries, semi-finished processing of industrial equipment accessories, musical instrument industry, lost eps foam mold industry, handicraft industry, architectural model industry, advertising industry.

Applicable Materials of foam carving router cnc machine:

engraving materials wood, foam, two-color board, organic board (acrylic), artificial stone, PVC board, wood, density board, ABS, two-dimensional relief and three-dimensional engraving.

2040 foam engraving machine performance parameters:

Working stroke (customized on demand): 2000mm*4000mm

Table structure: steel plate table (optional cast iron table)

Idle speed: 30000mm/min

Processing speed: 20000mm/min

Repeat positioning accuracy: ±0.02mm

System resolution: ±0.0025mm

Spindle power: 6KW air-cooled spindle (optional 9KW air-cooled spindle)

Spindle speed: 6000-18000r pm

Tool diameter: ￠3.175mm, ￠4mm, ￠6mm, ￠8mm, ￠10mm, ￠12.7mm

Drive system: Three-axis stepper motor drive (Optional three-axis AC servo motor)

Drive controller: Taiwan Syntec system

Transmission system: X, Y axis Taiwan Yintai guide rail (Optional Japanese THK guide rail)

Inverter: Taiwan Delta inverter

Software supports: TYPE3, UCANCAM, ARTCAM, MASTERCAM, UG, AutoCAD

Working voltage: AC380V/50HZ

Operation and maintenance methods of cnc foam block carving machine:

Operation and maintenance methods vary depending on the specific model and brand, but generally include the following steps:

‌Pre-startup inspection‌: Check whether all parts of the equipment are intact and ensure that there is no looseness or damage.

‌Operation specification‌: Operate in accordance with the operation manual to ensure safety.

‌Regular maintenance‌: Regularly check the lubrication of the equipment, clean the workbench and tools, and ensure the normal operation of the equipment.

‌Troubleshooting‌: When encountering a fault, troubleshoot and handle it according to the manual, and contact professional maintenance personnel if necessary.

The CNC processing of foam models required for solid casting has the obvious advantages of uniform and accurate allowances and good overall appearance of the mold. The important processing parts of the foam carving machine are all subjected to annealing and other heat treatment processes. After the processing is completed, three-coordinate measurement is performed to ensure the accuracy of the parts. The fully programmed processing of foam will be the direction of future development
